Για έγχυση χημικών (χλωρίου, αντικαθαλατωτικού, μικροβιοκτόνου, διόρθωσης ΡΗ κ.λ.π) στο νερό.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

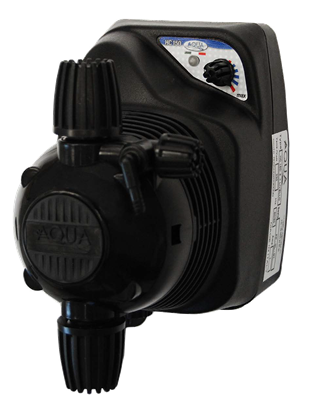

Τύπος : AQUA HC150
Διατσάσεις : 101 x 137 x 153 mm
Παροχή : 2 l/h
Αντίθληψη : 8 bar
Ρύθμιση συχνότητος : χειροκίνητα
Ρύθμιση εμβολισμών : χειροκίνητα
Ποδοβαλβίδα : PVC
Βαλβίδα έγχυσης : PVC
O-ring : teflon
Στεγανοποίηση : viton
Σωληνάκι αναρρόφησης/καταθλιψης : από ΡΕ 5 μ.
Προστασία : IP 65
Τροφοδοσία : 220 V
Συνοδεύεται προαιρετικά από δοχείο 100 λίτρων πολυαιθυλενίου για την αποθήκευση του χημικού.

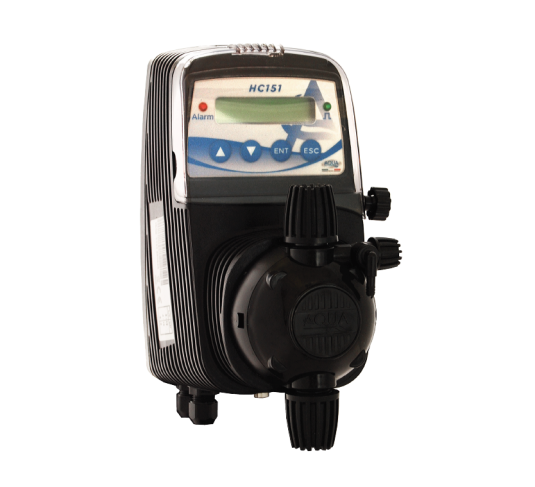

Multifunction solenoid digital dosing pumps. Dosing mode selectable in constant or proportional mode.
• Renforced PP housing, suitable for aggressive working enviroments;
• Input: level probe, inhibit, standby, flow sensor, injection;
• Output: alarm or dosing relay;
• Statistics;
• Password;
• Language and Unit measure selectable;
• Calibration flow-rate;
• Simplified setting by user menu;
• Alphanumeric display, 2 lines 16 characters, to simplify pump managing, during the working mode and during the Programmation;
• Power supply 230 Vac. Upon request: 110V;
• IP65 protection degree;
• Wall mounting bracket supplied in installation kit;
• Manual bleed valve (priming).
WORKING MODE
• Constant flow rate On/Off mode or Cycle mode (time/pause dosing, Ton-Toff);
• Proportional to an analogical signal 4-20 mA. Dosing range completely selectable by the user;
• Proportional to a digital signal (water-meter pulse-sender).MODE: ppm, 1xN (multiplication of received pulses), 1:N (division of received pulses), 1xN(T) (proportional dosing between two pulses), 1xN(M) (with frequency self-regulation for excessive input pulses)
